Serial Nbody Simulations#
[1]:
import os
from os import path
from time import time
import numpy as np
from astropy import units as u
from astropy import constants as const
[2]:
%matplotlib inline
import matplotlib.pyplot as plt
import matplotlib.patches as patches
plt.rcParams['figure.figsize'] = [6, 6]
plt.rcParams['image.origin'] = 'lower'
plt.rcParams['font.size'] = 12
[3]:
import peytonites
from peytonites import (
Distribution, SimState,
kpc_to_cm, cm_to_kpc,
lyr_to_cm, cm_to_lyr,
au_to_cm, cm_to_au
)
Inital Conditions#
Load Inital Condition#
[4]:
sim_init_cond = SimState.read('data/solar_system_10000step_init.dat')
Traditional Simulation#
[5]:
def traditional_simulation(sim_init_cond, out_dir, verbose=True):
G = sim_init_cond.G # cm^3 / (g s^2)
dt = sim_init_cond.dt
nsteps = sim_init_cond.nsteps
out_interval = sim_init_cond.out_interval
soft = sim_init_cond.soft
init_dist = sim_init_cond.distribution
number_particles = init_dist.N
x_arr = init_dist.x.copy()
y_arr = init_dist.y.copy()
z_arr = init_dist.z.copy()
vx_arr = init_dist.vx.copy()
vy_arr = init_dist.vy.copy()
vz_arr = init_dist.vz.copy()
mass_arr = init_dist.m.copy()
#----------------------------------------
for step in range(nsteps):
ax_arr = np.zeros_like(x_arr)
ay_arr = np.zeros_like(x_arr)
az_arr = np.zeros_like(x_arr)
for i in range(number_particles):
ax, ay, az = 0., 0., 0.
xi, yi, zi = x_arr[i], y_arr[i], z_arr[i]
for j in range(number_particles):
if i == j:
continue
dx = xi - x_arr[j]
dy = yi - y_arr[j]
dz = zi - z_arr[j]
r_ij_squared = dx**2 + dy**2 + dz**2 + soft**2
r_ij = np.sqrt(r_ij_squared)
r_ij_cubed = r_ij_squared * r_ij
mj = mass_arr[j]
a = - (G * mj) / r_ij_cubed
ax += a * dx
ay += a * dy
az += a * dz
ax_arr[i] = ax
ay_arr[i] = ay
az_arr[i] = az
for i in range(number_particles):
vx_arr[i] += ax_arr[i] * dt
vy_arr[i] += ay_arr[i] * dt
vz_arr[i] += az_arr[i] * dt
x_arr[i] += vx_arr[i] * dt
y_arr[i] += vy_arr[i] * dt
z_arr[i] += vz_arr[i] * dt
#----------------------------------------
if step % out_interval == 0:
if verbose:
print(step)
step_params = sim_init_cond.copy()
if step > 0:
step_dist = Distribution.from_arrays(
x_arr, y_arr, z_arr,
vx_arr, vy_arr, vz_arr,
mass_arr, name=init_dist.name)
step_params = sim_init_cond.copy()
step_params.distribution = step_dist
step_filename = 'step_{:08d}.dat'.format(step)
step_path = path.join(out_dir, step_filename)
if not os.path.isdir(out_dir):
os.makedirs(out_dir)
step_params.write(step_path)
if verbose:
print(step)
return
Define Output Dir#
Make sure to have a simout in the name for git ignore
[6]:
out_dir = './solar_system_simout'
[7]:
tstart = time()
traditional_simulation(sim_init_cond, out_dir, verbose=False)
tend = time()
traditional_run_time = (tend-tstart)*u.s
print('done', 'traditional_run_time:', traditional_run_time)
done traditional_run_time: 2.7658839225769043 s
Vector Simulation#
Running this will replace/overwrite the last outputs
Using vectorized operations in this implementation significantly reduces computation time compared to the double for-loop, but at the cost of massively increased memory usage due to storing large intermediate arrays for pairwise distances and accelerations.
[8]:
def vector_simulation(sim_init_cond, out_dir, verbose=True):
G = sim_init_cond.G # cm^3 / (g s^2)
dt = sim_init_cond.dt
nsteps = sim_init_cond.nsteps
out_interval = sim_init_cond.out_interval
soft = sim_init_cond.soft
init_dist = sim_init_cond.distribution
number_particles = init_dist.N
x_arr = init_dist.x.copy()
y_arr = init_dist.y.copy()
z_arr = init_dist.z.copy()
vx_arr = init_dist.vx.copy()
vy_arr = init_dist.vy.copy()
vz_arr = init_dist.vz.copy()
mass_arr = init_dist.m.copy()
#----------------------------------------
for step in range(nsteps):
dx = x_arr[:, np.newaxis] - x_arr
dy = y_arr[:, np.newaxis] - y_arr
dz = z_arr[:, np.newaxis] - z_arr
# Avoid division by zero by adding softening length
r_squared = dx**2 + dy**2 + dz**2 + soft**2
np.fill_diagonal(r_squared, 1) # Avoid self-interaction
r = np.sqrt(r_squared)
r_cubed = r_squared * r
# Compute accelerations
a = -G * mass_arr / r_cubed
np.fill_diagonal(a, 0)
ax_arr = np.sum(a * dx, axis=1)
ay_arr = np.sum(a * dy, axis=1)
az_arr = np.sum(a * dz, axis=1)
# Update velocities and positions
vx_arr += ax_arr * dt
vy_arr += ay_arr * dt
vz_arr += az_arr * dt
x_arr += vx_arr * dt
y_arr += vy_arr * dt
z_arr += vz_arr * dt
#----------------------------------------
if step % out_interval == 0:
if verbose:
print(step)
step_params = sim_init_cond.copy()
if step > 0:
step_dist = Distribution.from_arrays(
x_arr, y_arr, z_arr,
vx_arr, vy_arr, vz_arr,
mass_arr, name=init_dist.name)
step_params = sim_init_cond.copy()
step_params.distribution = step_dist
step_filename = 'step_{:08d}.dat'.format(step)
step_path = path.join(out_dir, step_filename)
if not os.path.isdir(out_dir):
os.makedirs(out_dir)
step_params.write(step_path)
#----------------------------------------
if verbose:
print(step)
return
[9]:
tstart = time()
vector_simulation(sim_init_cond, out_dir, verbose=False)
tend = time()
vector_run_time = (tend-tstart)*u.s
print('done', 'vector_run_time', vector_run_time)
done vector_run_time 0.6875908374786377 s
Visualization#
By “Hand”#
[10]:
file_path = path.join(out_dir, 'step_00001500.dat')
# Load simulation state
step_state = SimState.read(file_path)
# Get particle distribution
dist = step_state.distribution

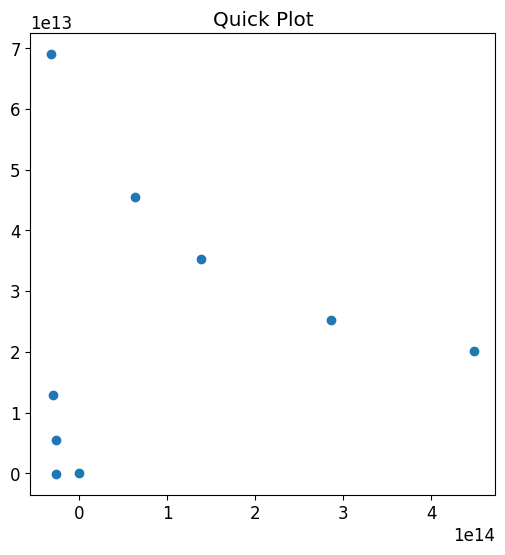

# Plot x and y in cm
plt.scatter(dist.x, dist.y)
plt.title('Quick Plot')
plt.show()

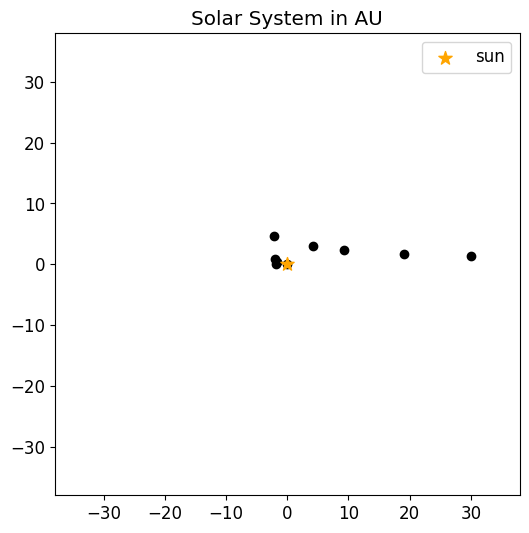

# Plot x and y in AU
# (you can also use astropy units)
plt.scatter(cm_to_au(dist.x), cm_to_au(dist.y), c='k')
# Make the sun a star
plt.scatter(cm_to_au(dist.x[0]), cm_to_au(dist.y[0]),
marker='*', c='orange', s=100, label='sun')
plt.xlim(-38, 38)
plt.ylim(-38, 38)
plt.title('Solar System in AU')
plt.legend()
plt.show()

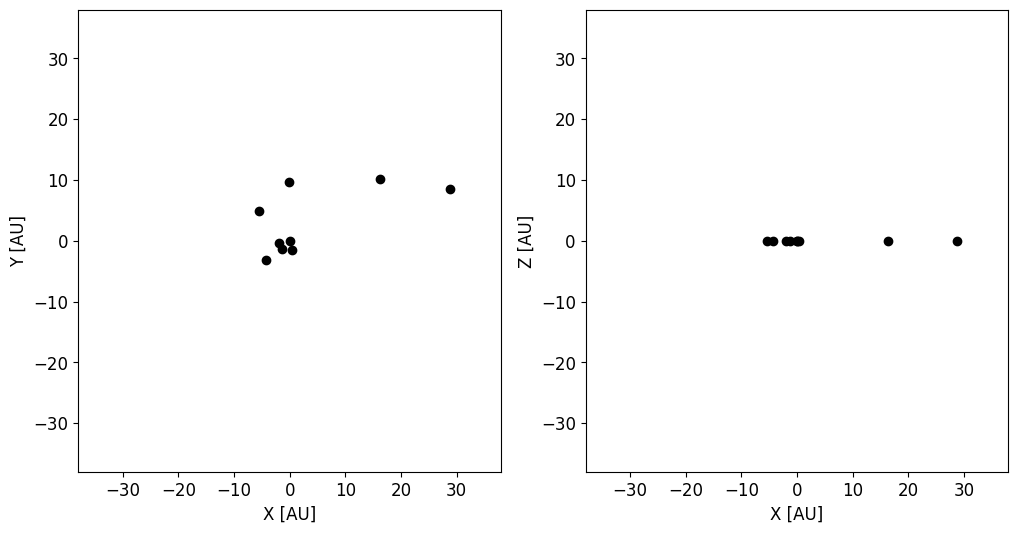

2D GIF#
This gif will be saved in the out_dir. Its kind of slow but does the job!
[11]:
peytonites.simulation_to_gif_2d(
out_dir,
gif_filename='solar_sys_2d.gif',
extent=38*u.AU,
unit='AU'
)

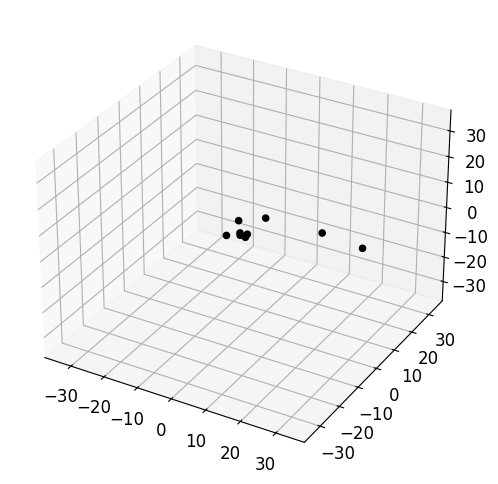

3D GIF#
This gif will be saved in the out_dir. Its kind of slow but does the job!
[12]:
peytonites.simulation_to_gif_3d(out_dir, gif_filename='solar_sys_3d.gif', extent=38*u.AU, unit='AU')
